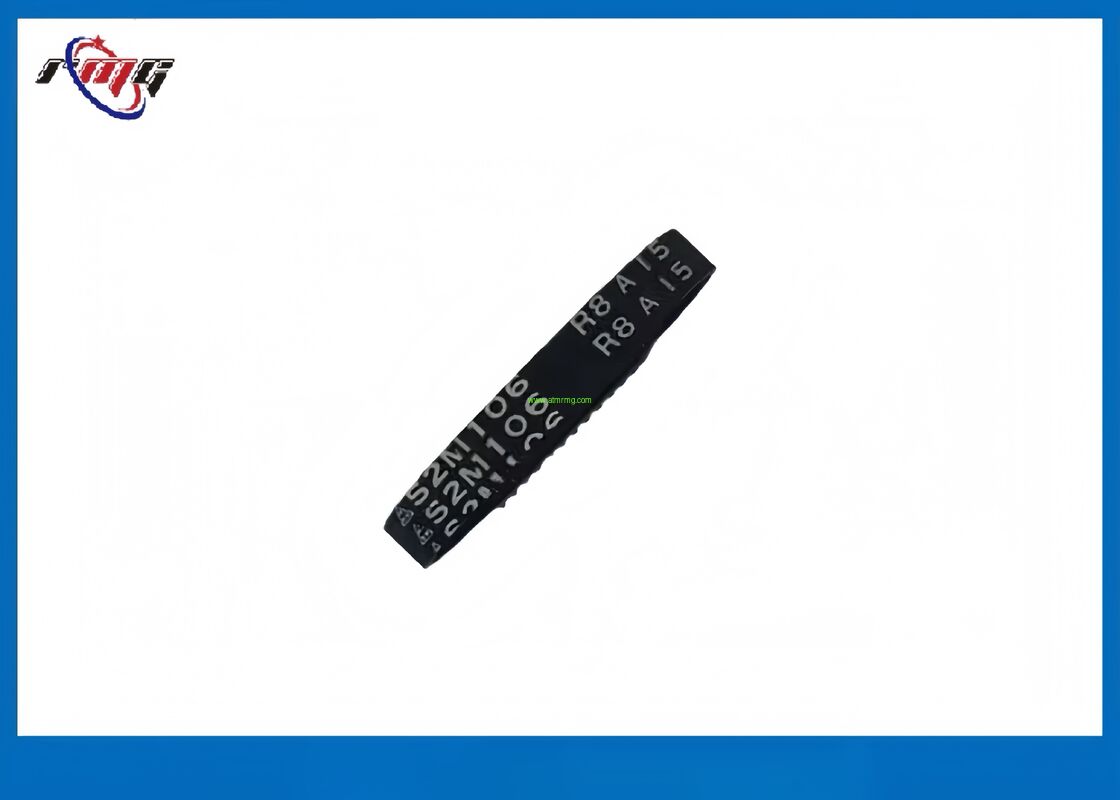

Fujitsu F53/F56 Cassette Timing Belt (S2M-106-6)
The CA82203-3053 is a high-precision, industrial-grade timing belt specifically engineered for the currency cassette units of Fujitsu F53 and F56 bill dispensing modules. It is a critical transmission component that ensures the synchronized movement of the internal mechanical parts of the cash box.
Key Features:
- Synchronous Performance: Designed with the S2M (Super Torque) circular tooth profile (2mm pitch), it prevents slippage and ensures accurate timing between the drive motor and the bill-lifting mechanism.
- Premium Material Construction: Manufactured from high-quality Neoprene (chloroprene rubber) reinforced with Fiberglass tensile cords. This combination provides excellent resistance to stretching, heat, and oil, ensuring long-term structural integrity.
- High Durability: Optimized for high-frequency stop-and-go operations characteristic of ATM bill dispensing cycles. It minimizes vibration and operational noise.
- Perfect Compatibility: As a genuine-spec replacement part, it fits perfectly into the compact housing of Fujitsu F53/F56 cassettes, facilitating smooth banknote feeding into the main transport path.
Common Applications:
- Used primarily within the Cash Cassette (Bill Box) to drive the pressure plate or the auxiliary picking gears.
- Essential for maintaining the correct pressure required to feed bills individually without causing jams or multi-bill pulls.
Technical Specifications
| Feature |
Specification |
| Material |
Neoprene Rubber with Fiberglass Reinforcement |
| Tooth Profile |
S2M (Circular Arc Tooth) |
| Pitch |
2.0 mm |
| Length (Circumference) |
106 mm |
| Width |
6.0 mm |
| Number of Teeth |
53 Teeth |
Company introduction
Wincor,Diebole,NCR,NMD,Hyusong,OKI Hyosung,GRG Supplier
- Thousands kind of brand spare parts stock,ready to ship.
- Free drawing,Free samples,Free opening model.
- Urgent orders min 3 days.
- Online video inspection and delivery.
- After-sales worry-free provide spars compensation and defective products in proportion
- Efficiency,Costing,7S Production
Our advantage
1. Good quality
2. Competitive price.
3. Prompt delivery
4. Accept small order.
5. Condition:new and original
Our service
1. Supply thousands of kinds of products including brands like NCR, Diebold, Wincor, Hitachi ect.
2. New, original,refurbished and used ATM equipment parts.
3. Professional and quick online technical support and solutions
4. After-sale service is reliable.
5. Prompt and on-time delivery.
Packaging and Shipping
1.Packing: With standard packing or according to customer's request.
2. Shipping:
| DHL |
3-8 days to arrive |
| TNT |
3-6 days to arrive |
| Fedex |
3-6 days to arrive |
| EMS |
7-15 days to arrive |
| UPS |
3-6 days to arrive |
| Others |
By sea or air |
FAQ
Q1. What’s the condition of your product?
A: Generally we can provide 4 conditions: new original, new generic,original used and original refurbished.
Q2. Does your product have a warranty?
A: Yes. Every product have a warranty, normally it is 3 months.
Q3. What’s the lead time of your product?
A: Normally it is 2-7 days after payment. The lead time is related to the quantity you ordered.
Q4. Do you have your own factory?
A: Yes. We have our factory, located in Shenzhen. We do the refurbishment by ourselves and We can build the molds and fixtures.
